Wallenstein

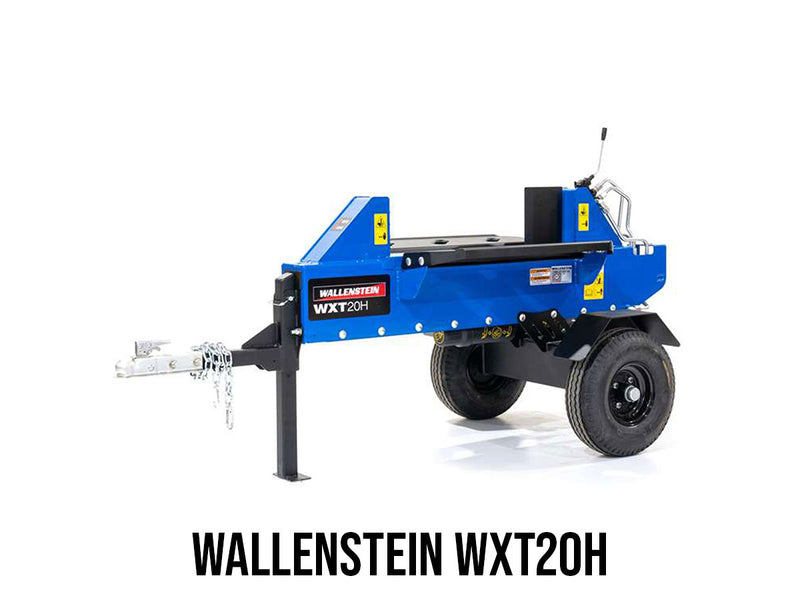

Wallenstein WXT20H Horizontal 2-Way Log Splitter
MPN: WXT20H
$4,491.00
Shipped from Wellsville, UT
Overview
The Wallenstein WXT20H is a powerful and efficient horizontal log splitter designed for both rural property owners and rental businesses.
Free shipping on orders over $2,500
Manufacturer warranty included
Ships in 3-5 business days
Questions? (888) 464-4880
Accepted Payment Methods:
Overview
The Wallenstein WXT20H is a powerful and efficient horizontal log splitter designed for both rural property owners and rental businesses. This wood processing machine, with its 20-ton splitting force, makes quick work of logs, splitting them in both directions for maximum productivity.
Key Features
- 2-Way Splitting Action: Splits logs in both directions, effectively doubling your productivity and reducing cycle time.
- Two Stage Hydraulic Pump: Maximizes efficiency by providing high speed at low pressure and high pressure at low speed, automatically adjusting to the load.
- Wide Log Shelves: Provides a large working area to handle multiple split logs, reducing the need to constantly bend over and pick up wood.
- Vanguard Engine: Powered by a reliable 6.5 HP Vanguard engine, ensuring consistent power and performance.
- Towable: Equipped with highway tires and a 2" ball hitch for easy transportation to and from the worksite.
Specifications
| Manufacturer | Wallenstein |
| Model/Series | WXT20H |
| Orientation | Horizontal |
| Split Opening | 24" (61 cm) |
| Split Force | 20 Ton |
| Engine | Vanguard® 6.5 hp (203 cc) |
| Average Splitter Cycle Time | 6.6 Seconds |
| Full Cycle | 13.2 Seconds |
| Cylinder Diameter | 4" (10cm) |
| Wedge Height | 9.375" (23.8 cm) |
| Bed Height | 27.5" (69.85 cm) |
| Tires | 18.2" (46.23 cm) |
| Hitch | 2" Ball |
| Total Weight | 523 lbs (237 kg) |
| Dimensions (LxWxH) | 90.5" x 45.4" (230 cm x 115 cm) |
| Hydraulic Capacity | 3.75 US gal (14 l) |
Applications
The Wallenstein WXT20H is ideal for homeowners with woodlots, farmers, and rental businesses that need a reliable and productive log splitter for processing firewood.
