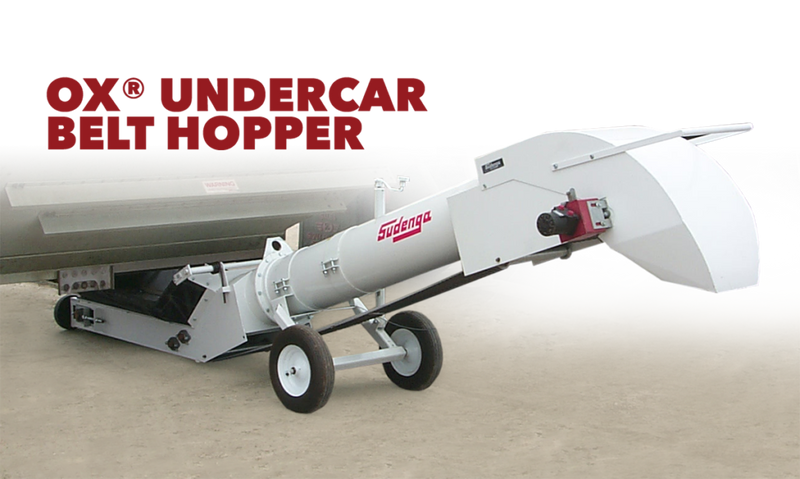

Sudenga Belt Transfer Hopper

Overview

The Sudenga Belt Transfer Hopper is a high-capacity undercar belt conveyor designed for gently moving seed and other sensitive commodities from low-clearance hopper bottom trailers, trucks, or wagons. This Sudenga auger and grain handling equipment is built for efficiency and ease of use in demanding agricultural applications.

Key Features

• High Capacity: Moves up to 4,000 bushels per hour (5,000 cubic feet per hour), allowing for rapid transfer of materials.
• Gentle Handling: The 14-inch PVC belt with a crescent top surface ensures that seed and other delicate materials are handled gently, minimizing damage.
• Easy Maneuverability: The transport winches up, allowing the hopper to be swung around easily, and the unit is well-balanced for simple positioning.
• Collapsible Hopper: A remote lever collapses the hopper shroud for extra clearance under low trailers and raises to minimize spillage during operation.
• Adjustable Discharge: The discharge height can be adjusted from 31 to 38 inches to accommodate various receiving equipment.
• Durable Construction: Features a 12-gauge mild steel tube and a robust design for long-lasting performance in the field.

Specifications

Applications

This belt transfer hopper is ideal for farmers and commercial operators who need to transfer bulk seed, grain, or other granulated materials from hopper-bottom trailers and trucks into planters, bins, or other handling equipment. Its gentle handling makes it particularly well-suited for seed applications where maintaining quality is critical.

Shipping & Warranty

This item ships via freight carrier to locations across the Lower 48 United States. Free shipping on orders over $2,500. All Sudenga products come with the full manufacturer warranty.
