OVERVIEW

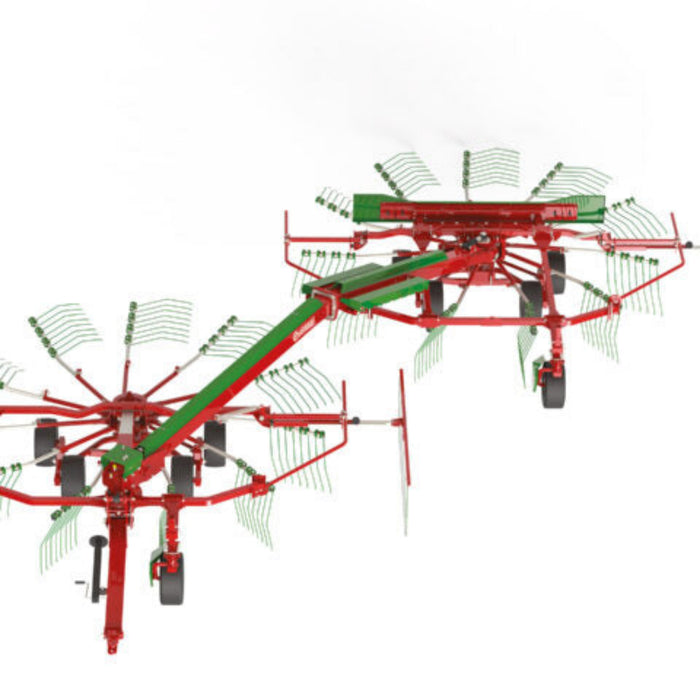

The Enorossi TRACER 780 Double Rotary Hay Rake is a versatile forage handling machine engineered to provide flexible windrow formation and accurate ground adaptation for modern hay and forage operations. Designed to accommodate different harvesting strategies, the TRACER 780 supports both two single swaths or a single side swath, allowing operators to adapt raking patterns to crop volume, field layout, and downstream harvesting requirements.

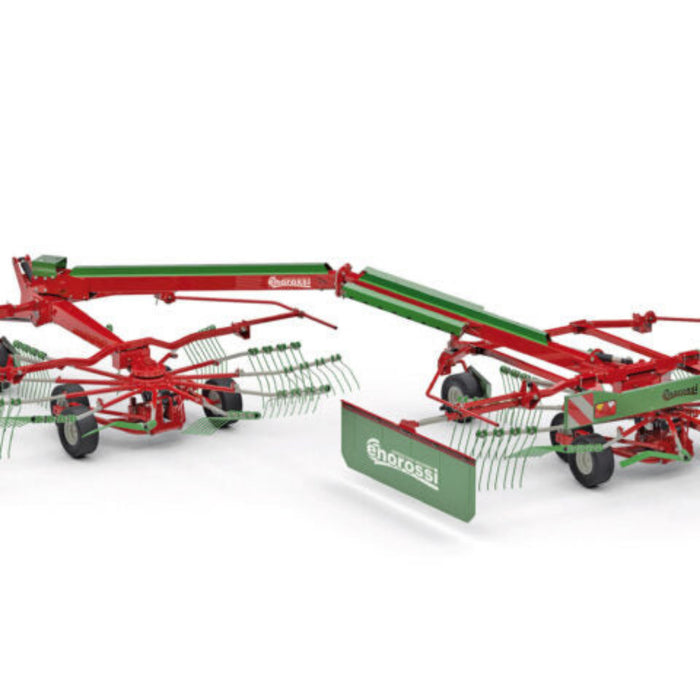

At the core of the TRACER 780 is its double rotary rake configuration, which delivers controlled and consistent crop movement across a wide working area. The dual rotors operate in coordination to gather forage efficiently while maintaining uniform windrow structure. This configuration supports clean raking results and helps prepare forage for baling, wrapping, or collection with minimal additional passes.

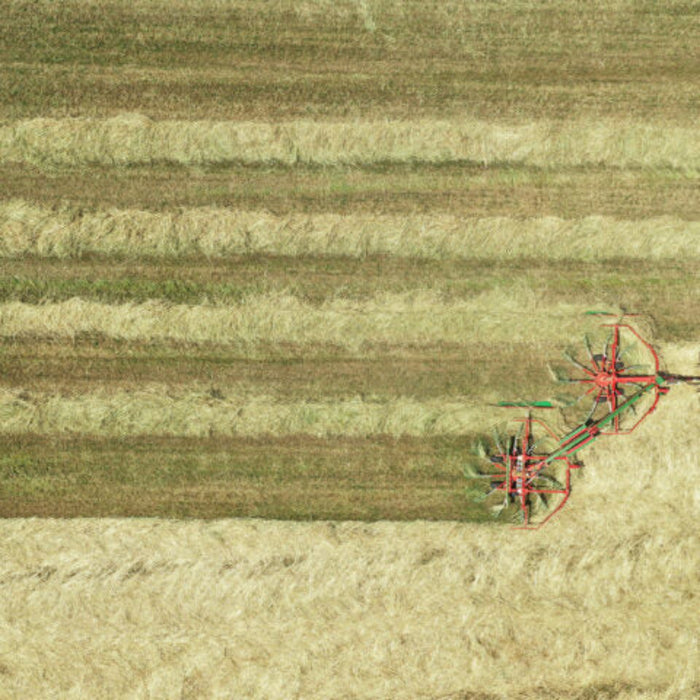

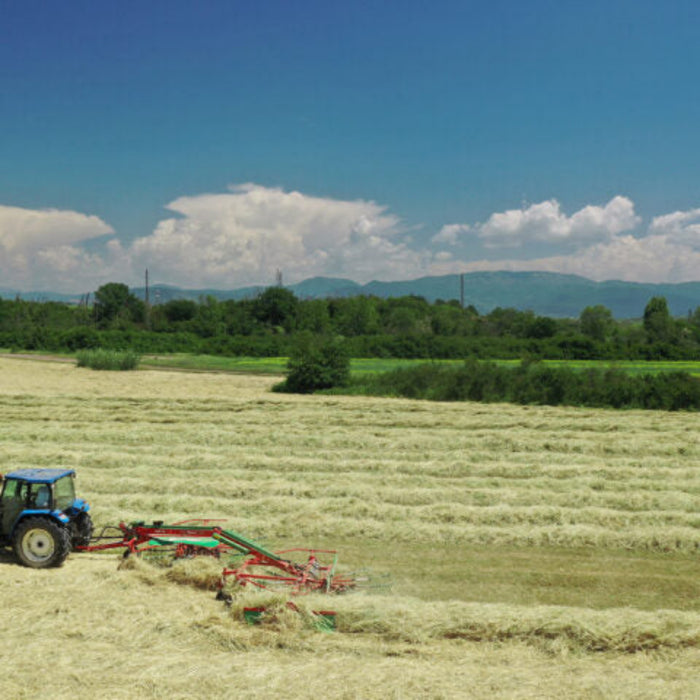

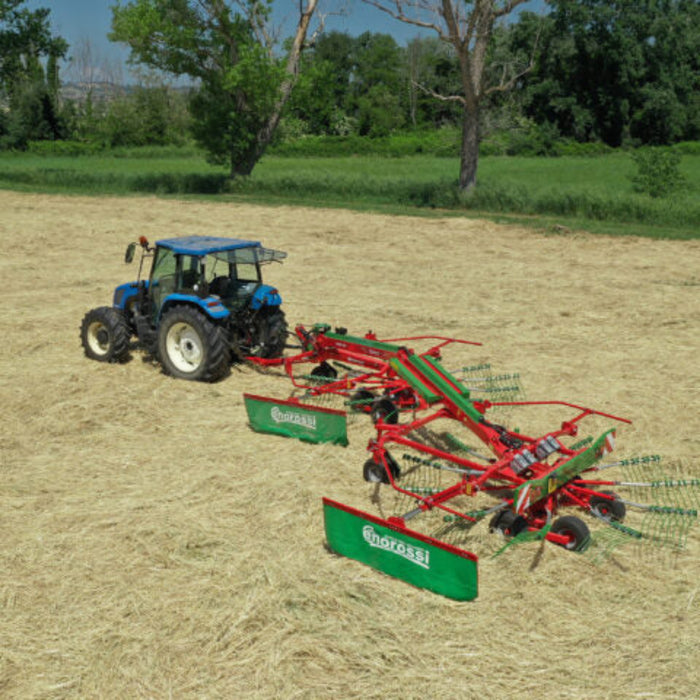

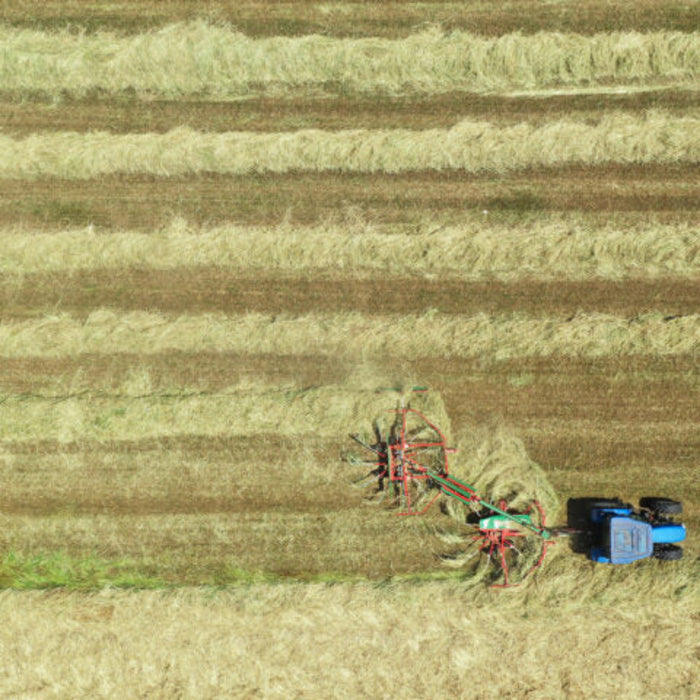

One of the defining features of the TRACER 780 is its ability to form either two separate windrows or a single side windrow. This operational flexibility allows operators to tailor windrow formation to match different harvesting systems and field conditions. Creating two single swaths can improve drying efficiency in lighter crops, while forming a single side swath supports higher-capacity harvesting workflows. The adaptable windrow configuration makes the TRACER 780 suitable for a wide range of hay and forage applications.

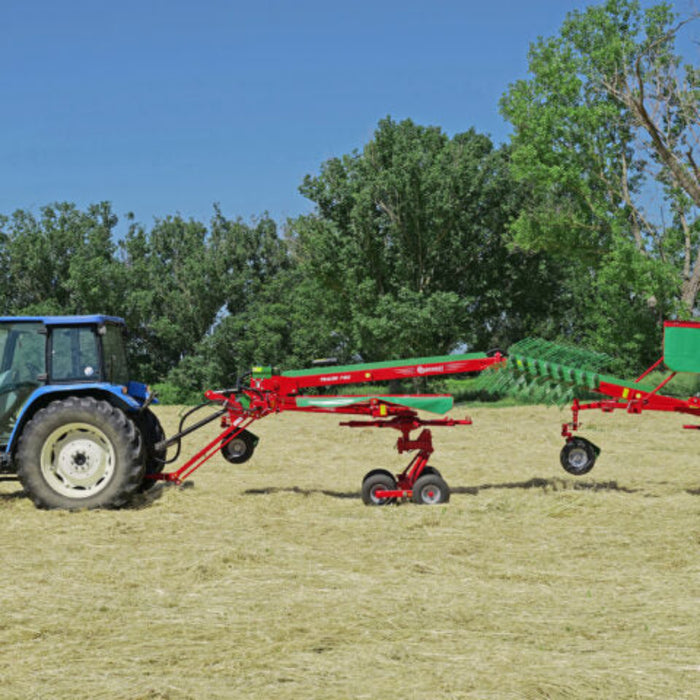

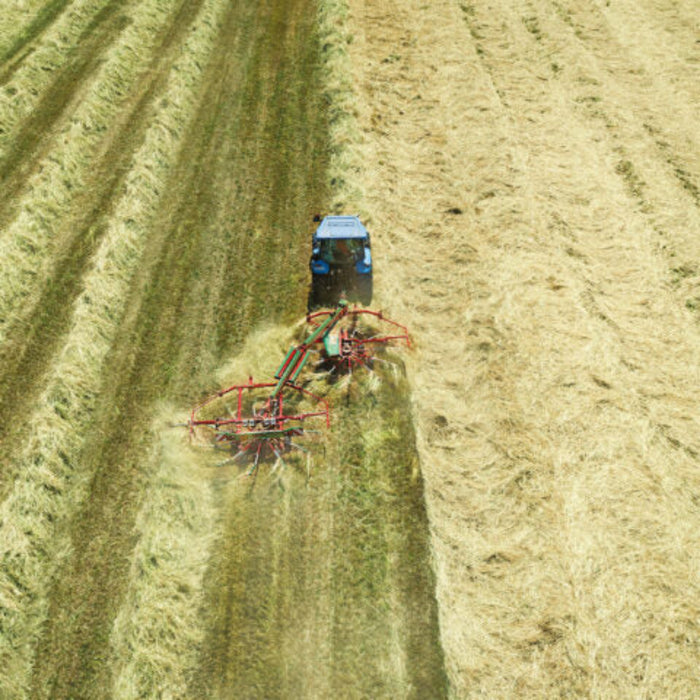

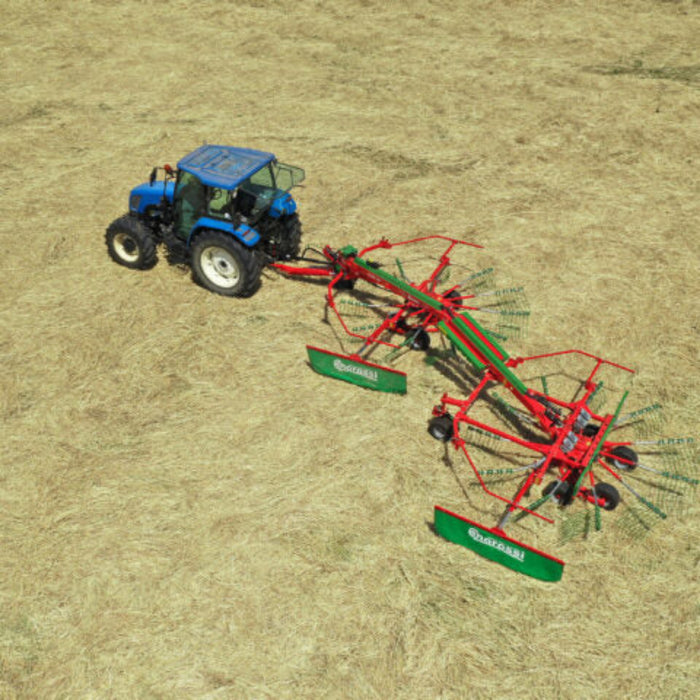

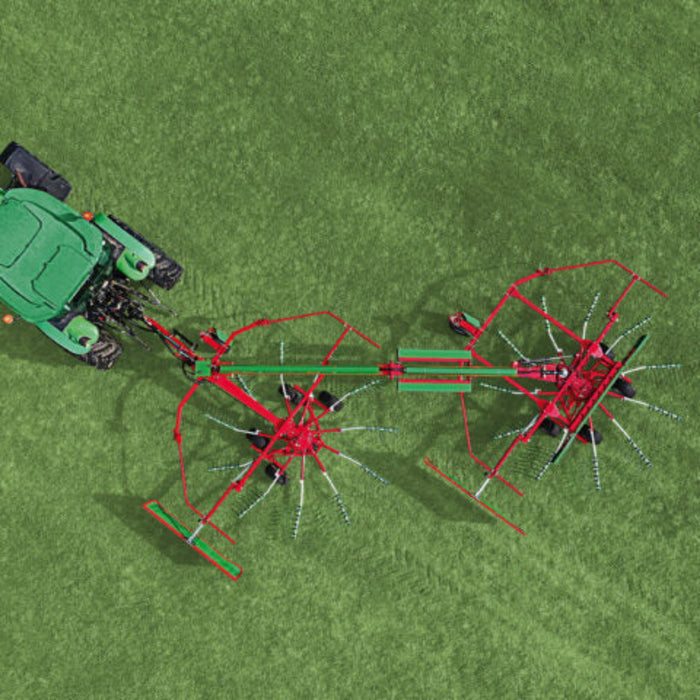

The TRACER 780 is equipped with a trailed tractor hitch, which contributes to stable operation and smooth maneuverability during fieldwork. The trailed design improves weight distribution and allows the rake to follow the tractor naturally through turns and headland maneuvers. This configuration supports consistent rotor positioning and helps maintain steady crop flow during operation, particularly in larger fields or uneven terrain.

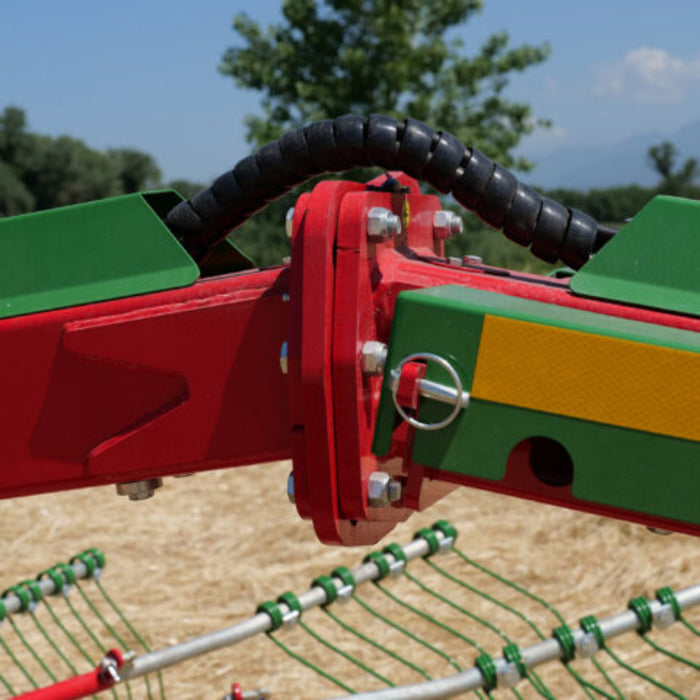

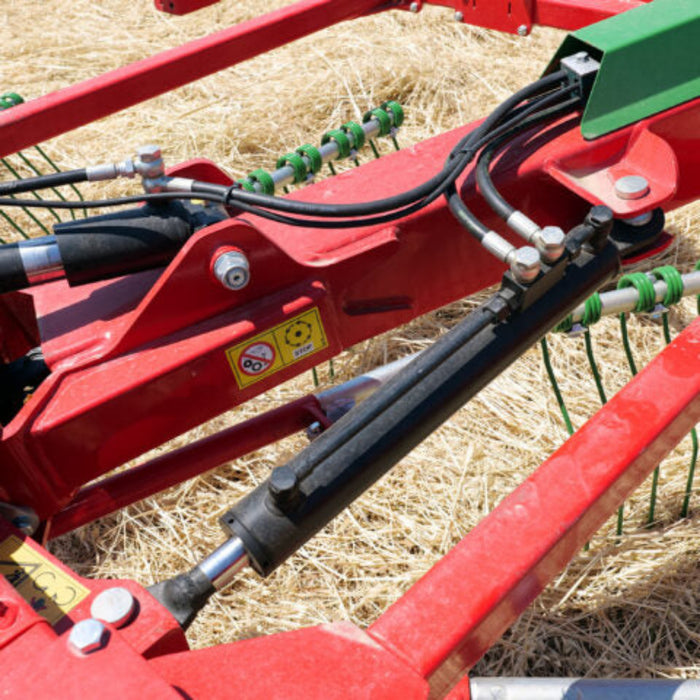

Operational flexibility is further enhanced by the hydraulically variable working width, which allows operators to adjust the raking width directly from the tractor. This feature makes it possible to adapt quickly to changing crop conditions, field layouts, or desired windrow sizes without stopping work. Adjusting the working width on the go helps optimize windrow density and alignment, improving efficiency across varying harvesting scenarios.

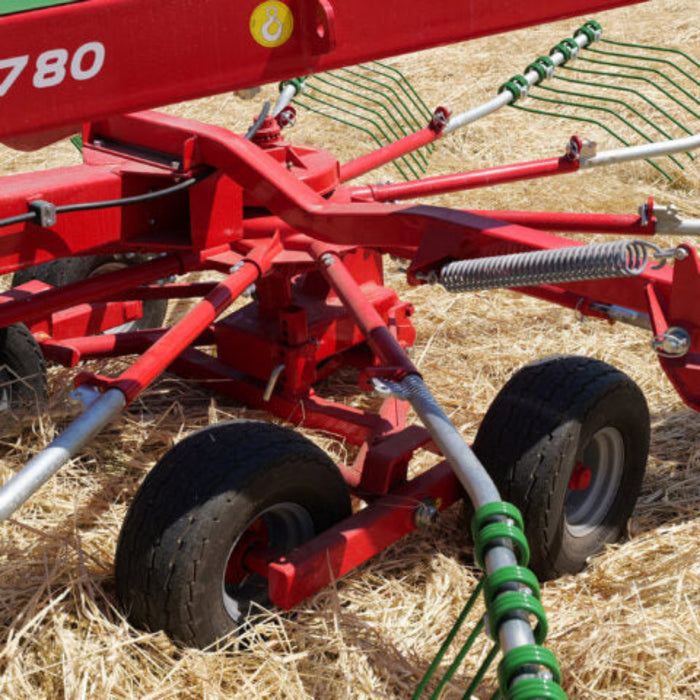

Both rotors of the TRACER 780 are designed with oscillating functionality, allowing them to adapt independently to ground contours. This oscillation improves ground-following accuracy and helps maintain a consistent tine working height across uneven or rolling terrain. Accurate ground adaptation reduces excessive soil contact and minimizes contamination in the windrow, which is essential for preserving forage quality and protecting downstream harvesting equipment.

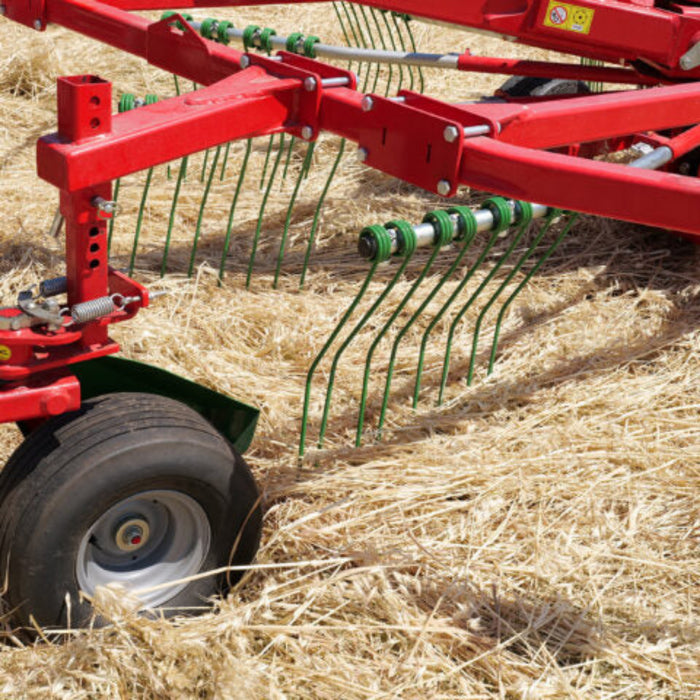

The raking arms are engineered to deliver gentle crop handling, ensuring smooth and controlled movement of hay and forage during operation. This controlled raking action helps reduce leaf loss and preserve crop structure, which is especially important for maintaining nutritional value in forage crops. Uniform tine engagement supports even crop flow and consistent windrow shape throughout the working width.
Structural durability is a key consideration in the TRACER 780’s design. The rake is built around a robust steel frame engineered to withstand continuous agricultural use. The structural components are designed to support stable rotor operation and consistent performance during extended working periods, contributing to long-term reliability and reduced downtime during the harvesting season.
The TRACER 780 integrates easily with a wide range of agricultural tractors and is designed for efficient operation at typical working speeds. Its balanced trailed configuration, combined with hydraulic working width adjustment and oscillating rotors, supports precise control and smooth performance across large field areas. These features make the TRACER 780 a practical choice for operations requiring flexible windrow formation and dependable forage handling.
Ease of use and maintenance are also addressed in the TRACER 780’s design. Service points are positioned for convenient access, allowing routine inspections and maintenance tasks to be carried out efficiently. This practical approach supports consistent machine readiness and helps maintain reliable performance throughout the harvesting season.
Whether used in hay production, forage harvesting, or mixed operations, the Enorossi TRACER 780 Double Rotary Hay Rake provides a dependable solution for adaptable windrow formation and controlled crop handling. By combining a trailed hitch design, hydraulically adjustable working width, oscillating rotors, and flexible windrow configurations, the TRACER 780 supports efficient drying, improved harvesting workflow, and consistent performance across diverse field conditions.
FEATURES & BENEFITS
STANDARD EQUIPMENT
- Windrow delivery: Left side
- Rotor transmission: Oil bath

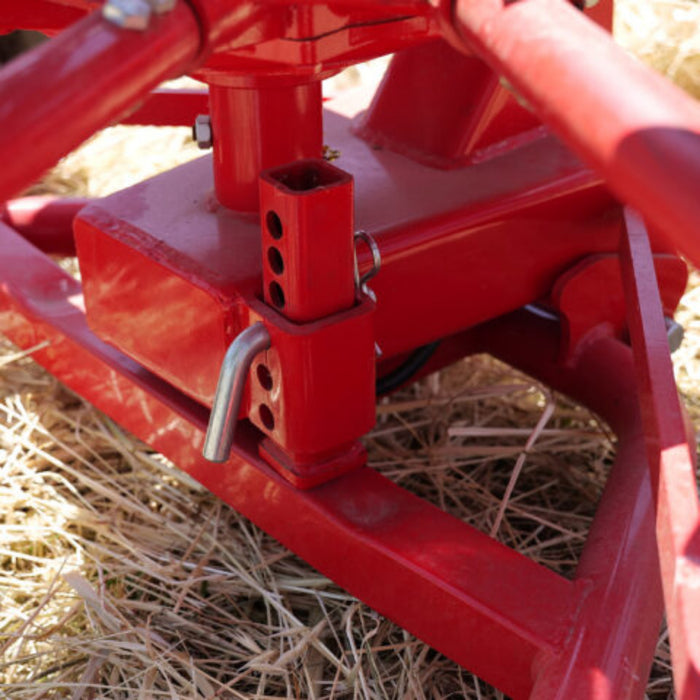

- Working depth control Hydraulic
- Rotors Arms: Overlapping
- Working width adjustment Hydraulic
- Drawbar hitch Trailed
- Transmission with cardan shafts
- Lights and road signaling kit
- Wide angle cardan shaft for tractor
With all these features, the Enorossi TRACER 780 Double Rotary Hay Rake supports flexible windrow formation through its double rotor design, hydraulically adjustable working width, and trailed hitch—making it a dependable solution for hay and forage handling operations.
Explore more Hay & Forage Equipment in our collection today.
BENEFITS
✔ Double rotary hay rake designed for flexible windrow formation
✔ Supports two single swaths or a single side swath configuration
✔ Hydraulically adjustable working width adapts to field conditions
✔ Trailed hitch design improves stability and maneuverability
✔ Oscillating rotors provide accurate ground adaptation
✔ Gentle raking action helps preserve forage quality
✔ Uniform crop handling supports efficient harvesting workflows
✔ Durable frame construction designed for continuous agricultural use
OPTIONAL
- Italian approval for road circulation
SPECIFICATIONS
| Specification |
Details |
| Working width (min/max) |
— |
| Working width single windrow |
7.80 m |
| Larger to small area windrow |
7.35 / 6.75 m |
| Working width double windrow |
7.80 m |
| Larger to small double windrow |
7.25 / 6.65 m |
| Windrow delivery |
Left side |
| Type of windrow |
Left side |
| Average working width |
7.0 m |
| Larger to smaller fan/chain |
— |
| Number of rotors |
2 |
| Rotor diameter |
380 cm |
| Rotor transmission |
Oil bath / Bevel gear drive |
| No. of tine arms per rotor |
11 + 11 |
| No. of double tines per arm |
4 + 4 |
| Rotors arms |
Overlapping / Convergence |
| Working depth control |
Hydraulic |
| Corridor production of traces |
Hydraulic |
| Working width adjustment |
Hydraulic |
| Transport width (with arms on) |
2.99 m |
| Transport width (arms dismounted) |
2.50 m |
| Transport length |
8.75 m |
| Transport height |
3.65 m |
| Hydraulic drawbar hitch |
Yes |
| Drawbar hitch type |
Towed |
| Attelage |
3-point |
| Tires on bogies |
4 × 18.5-8 |
| Supporting wheel size |
4 × 18.5-8 |
| Weight |
1,780 kg |
| Power required (HP) |
70 / 80 HP |
| Required tractor hydraulic connections |
1 SE + 1 DE |
| Hydraulic system |
Oil bath sealed gearbox |
